7*37 20mm - 32mm Ss 316 Wire Rope Stainless Steel Invisible Grille Material
Descriptions
1. Certifications & Testing
Certifications: CE, DNV-GL, or ABS marine certification (as applicable).
Testing: 100% non-destructive testing (NDT) for wire integrity; load-tested batches available.
2. Technical Specifications
Diameter Range: 1.5mm – 20mm (customizable).
Minimum Breaking Load (MBL): Complies with ISO 2408 or DIN 3055 standards (provide exact values per gauge).
Safety Factor: 5:1 standard (adjustable to 7:1 for critical applications).
3. Surface Finish & Lubrication
Bright Finish: Smooth surface reduces friction and wear.
Lubrication: Pre-lubricated with anti-corrosion grease (optional wax coating for extreme conditions).
4. Material Composition
Grade: 304/316 stainless steel (specify 316L for marine/chemical environments).
Corrosion Resistance: Meets ASTM A493/A580 standards, resistant to rust, acids, and UV exposure.
Technical Specification
| Structure | Nominal Diameter / MM | Minimum Breaking Force / KN | Reference Weight (KG/1000M) |
|
| AISI 304 06Cr19Ni10 | AISI 316 06Cr17Ni12Mo2 |
|
| 7×7(6×7+IWS)7×7(6×7+IWS) | 0.8 | 0.461 | 0.384 | 2.56 |
| 1.0 | 0.637 | 0.599 | 4.00 |
| 1.2 | 1.2 | 0.915 | 5.76 |
| 1.5 | 1.67 | 1.47 | 9.00 |
| 1.8 | 2.25 | 1.94 | 12.96 |
| 2.0 | 2.94 | 2.55 | 16.0 |
| 2.5 | 4.1 | 3.45 | 25.0 |
| 3.0 | 6.37 | 5.39 | 35.1 |
| 3.18 | 7.15 | 6.14 | 39.4 |
| 3.5 | 7.64 | 6.81 | 47.8 |
| 4.0 | 9.51 | 8.9 | 62.4 |
| 4.76 | 12.1 | 11.3 | 88.4 |
| 5.0 | 14.7 | 13.9 | 97.5 |
| 6.0 | 18.6 | 18.6 | 140 |
| 8.0 | 40.6 | 35.6 | 250 |
| 7×19(6×19+IWS)7×19(6×19+IWS) | 1.5 | 1.63 | 1.37 | 9 |
| 2.0 | 2.94 | 2.55 | 16 |
| 2.5 | 4.1 | 3.52 | 25 |
| 3.18 | 7.85 | 6.08 | 39 |
| 4.0 | 10.7 | 9.51 | 62 |
| 4.76 | 16.5 | 13.69 | 88 |
| 5.0 | 17.4 | 14.9 | 98 |
| 6.0 | 23.5 | 20.8 | 140 |
| 6.35 | 28.5 | 23.7 | 157 |
| 8.0 | 40.1 | 36.1 | 250 |
| 9.53 | 53.4 | 47.9 | 354 |
| 10 | 63 | 55 | 390 |
| 12 | 85.6 | 75 | 562 |
| 14 | 123 | 108 | 764 |
| 16 | 161 | 142 | 998 |
| 18 | 192 | 169 | 1264 |
| 20 | 237 | 209 | 1560 |
Functions and Feature
1,The steel wire rope is a helical wire bundle made of steel wires with mechanical properties and geometric dimensions that meet the requirements.
2,A steel wire rope is a rope that is twisted into strands from multiple layers of steel wire, and then a certain number of strands are twisted into a spiral with the core as the center.
3,In material handling machinery, it is used for lifting, traction, tensioning and carrying.
4,The steel wire rope has high strength, light weight, stable work, not easy to be broken suddenly, and reliable work.

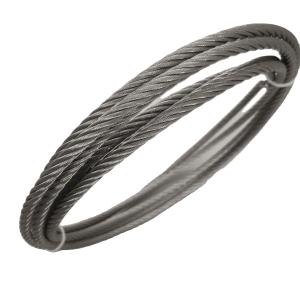

Details Photos
FAQ
Q1. MOQ and delivery time ?
A: NO MOQ required, sample testing welcome.. Mixed samples areacceptable.Sample needs 3-5 days, mass production time needs 1-2 weeks fororder quantity more than
Q2. What about the lead time?
A: Firstly,let us know your requirements or application.Secondly,We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit forformal order.
Fourthly,We arrange the production.
Q3. Can you do OEM?
A: Yes, we are 20+ years factory,we have design team,engineerteam,after-service team QCteam etc.
Q4. How about the shipping method ?
A: We usually ship by DHL, UPS, FedEx or TNT. lt usually takes 3-5days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
Q6. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control systemSecondly, during the guarantee period, we will send new lights withnew order for small quantity. For defective batch products, we willrepair them and resend them to you or we can discuss the solutionincluding re-call according to real situation.
